Description

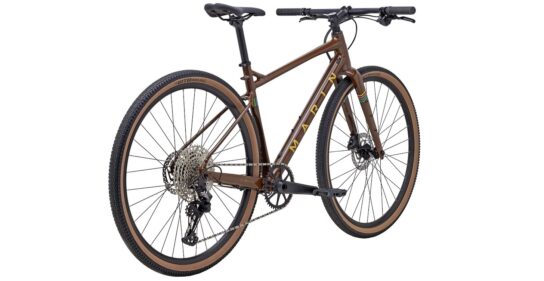

marin bike gravel Marin DSX 2 Brown Gravel Bike with Shimano Deore 12-Speed – United By CyclingLONG DISTANCE MIXED SURFACE COMMUTING GRAVEL RIDING ADVENTURE ON AND OFF ROAD RIDING The Marin DSX 2 is the top dog of the rigid forked DSX pack, built around a Series 3 aluminum frame and a lightweight, carbon fork thats packed with mounting points for bikepacking gear. Theres also a 12 speed 1X Shimano Deore drivetrain, WTB Riddler tires, Shimano hydraulic brakes and plenty of reliable Marin components. Key upgrades over the DSX 1: Shimano Deore
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
The Marin DSX 2 is the top-dog of the rigid-forked DSX pack, built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Shimano hydraulic brakes and plenty of reliable Marin components.
Key upgrades over the DSX 1:
- Shimano Deore 6100 1x12 drivetrain
- Shimano hydraulic disc brakes
SPECIFICATIONS
-
FRAME
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
-
FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
-
RIMS
Marin Aluminum Double Wall, 21mm Inner, Disc Specific
-
HUB, REAR
Forged Aluminum, 142x12mm, Centerlock Disc, 32H
-
HUB, FRONT
Forged Aluminum, 100x12mm, Centerlock, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
WTB Riddler, 700Cx45mm
-
DERAILLEUR, REAR
Shimano Deore 12-Speed
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Deore 12-Speed
-
CRANKSET
Forged Aluminum, 42T Steel Narrow Wide Chainring
-
BOTTOM BRACKET
Sealed Outboard Bearing
-
CHAIN
KMC X12
-
CASSETTE
SunRace 12-speed, 11-51
-
BRAKE, FRONT
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
-
BRAKE, REAR
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Shimano Hydraulic
-
HANDLEBAR
Marin MiniRiser
-
STEM
Marin 3D Forged Alloy
-
GRIPS
Marin MTB
-
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
-
SEATPOST
Marin Alloy
-
SADDLE
Marin DSX
-
PEDALS
Commute Platform
-
EXTRAS
Bolt-On Thru-Axles F and R
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 544.4 | 572.5 | 600.6 | 628.7 |
| REACH | 380 | 405 | 420 | 435 |
| HEADTUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° |
| HEAD TUBE LENGTH (MM) | 120 | 150 | 180 | 210 |
| SEATTUBE ANGLE | 74° | 74° | 74° | 74° |
| SEAT TUBE LENGTH (MM) | 430 | 480 | 520 | 558 |
| TOP TUBE EFFECTIVE (MM) | 536.1 | 569.2 | 592.2 | 615.3 |
| BB HEIGHT | 279.5 | 279.5 | 279.5 | 279.5 |
| BB DROP | 80 | 80 | 80 | 80 |
| CHAIN STAY (MM) | 425 | 425 | 425 | 425 |
| WHEELBASE | 1024.42 | 1060 | 1085.4 | 1110.9 |
| STANDOVER HEIGHT | 658.76 | 700.51 | 730.39 | 758.5 |
| FORK OFFSET (MM) | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH (MM) | 640 | 680 | 680 | 680 |
| STEM LENGTH (MM) | 70 | 70 | 70 | 70 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
TECHNOLOGY
SERIES 3 FRAME
The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.
TIRE CLEARANCE
The DSX comes stock with 700x45mm tires, with room for 29x2.1”
knobbies.
DISC BRAKES
The DSX features the latest flat mount disc brake standard
for smooth, controlled stopping in all conditions with minimal
maintenance.
DROPPER POST ROUTING
Dropper posts are quickly becoming standard fare for gravel racers
and riders that spend significant time on rough surfaces, and the
DSX features internal dropper post routing for easy upgrades.
